Asphalt Pavement Sawcut and Concrete Interface Detail

Materials

Elements

About this detail

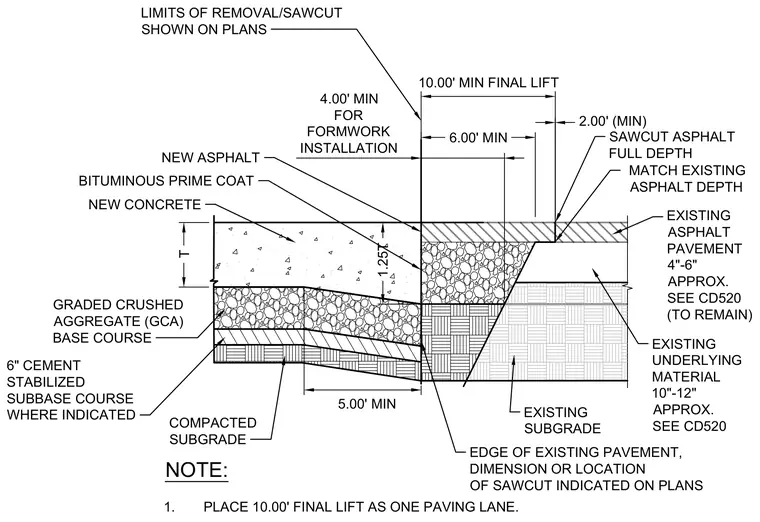

A pavement transition and sawcut interface connects new concrete pavement to existing asphalt pavement. The assembly bears on a graded crushed aggregate base course, a six-inch cement-stabilized subbase course where indicated, and a compacted subgrade. The existing asphalt pavement features a full-depth sawcut matching the existing asphalt depth, set adjacent to a bituminous prime coat and new concrete. Minimum dimensions for formwork installation, final lift placement, and sawcut offsets are explicitly designated.
