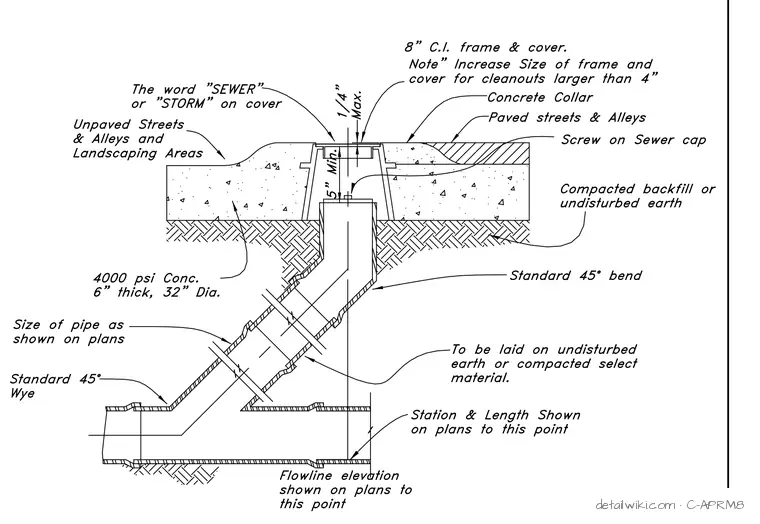

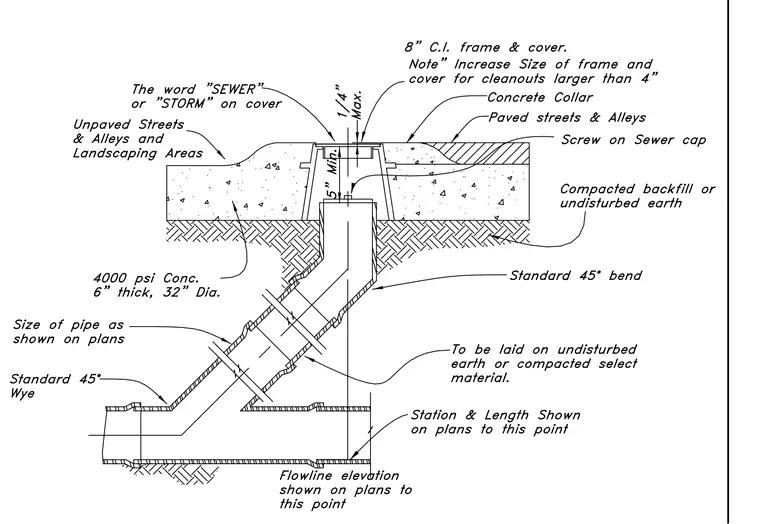

This cleanout assembly consists of an eight-inch cast iron frame and cover set into a six-inch thick, thirty-two-inch diameter four-thousand psi concrete collar. The frame is positioned with a maximum one-quarter inch reveal above the surrounding paved or unpaved surface. A screw-on sewer cap sits atop the pipe riser, which connects to the main line via a standard forty-five degree bend and a standard forty-five degree wye. The entire pipe assembly is laid on undisturbed earth or compacted select material, with the pipe size determined by the project plans.
