Three number six peripheral ties reinforce the exterior slab edge typically. Splices for the peripheral ties occur at the center third of the bay and are staggered per standard detail. Non-contact lap splices are prohibited.

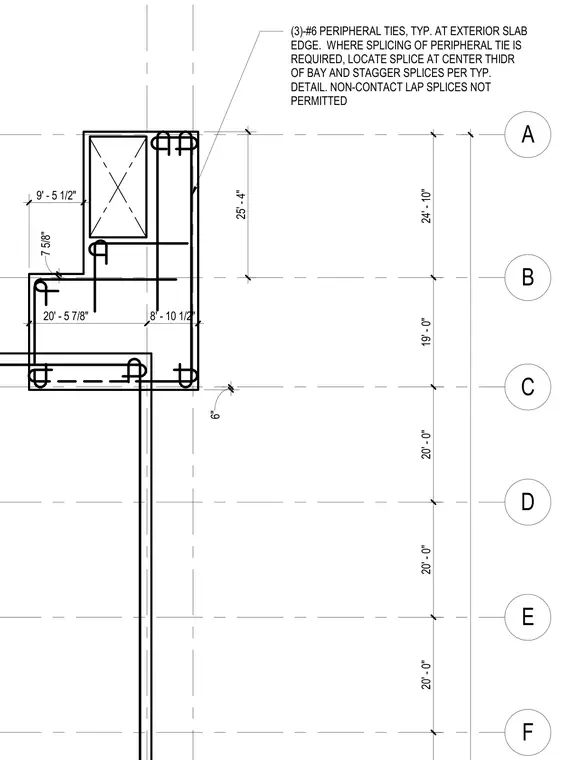

C D E F A B 9' - 5 1/2" 7 5/8" 25' - 4" 20' - 5 7/8" 8' - 10 1/2" 6" (3)-#6 PERIPHERAL TIES, TYP. AT EXTERIOR SLAB EDGE. WHERE SPLICING OF PERIPHERAL TIE IS REQUIRED, LOCATE SPLICE AT CENTER THIDR OF BAY AND STAGGER SPLICES PER TYP. DETAIL. NON-CONTACT LAP SPLICES NOT PERMITTED 24' - 10" 19' - 0" 20' - 0" 20' - 0" 20' - 0"
