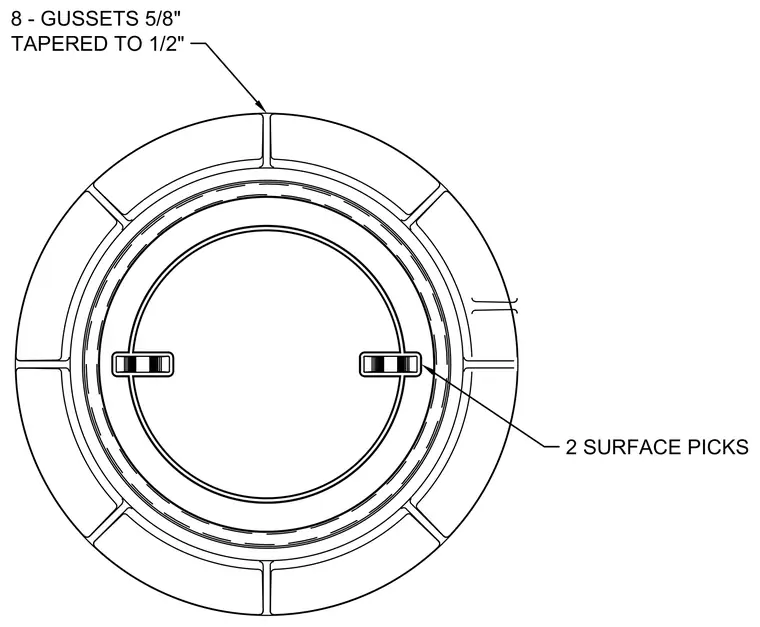

Eight gusset plates measuring five-eighths of an inch tapered to one-half of an inch are arranged around the circular assembly. Two surface picks are integrated into the internal ring.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
