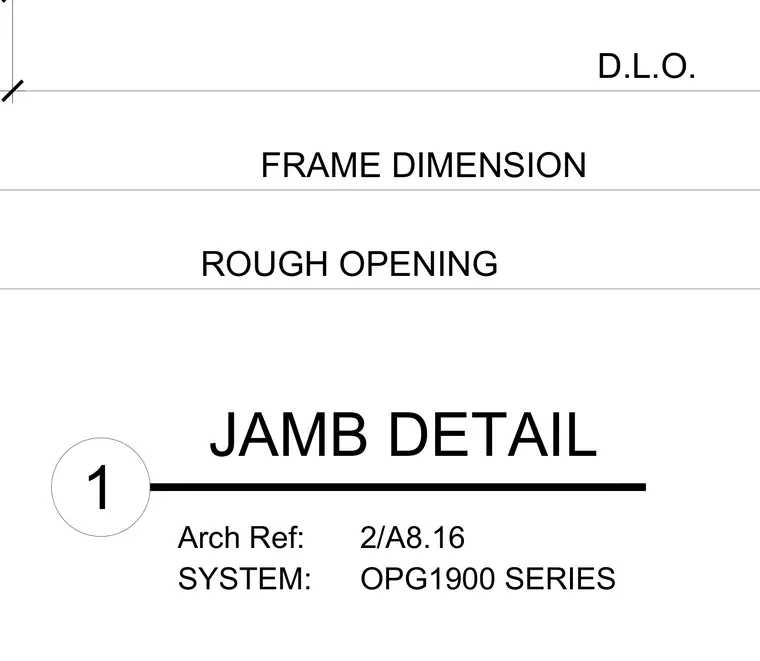

This jamb detail establishes the dimensional relationship between the daylight opening, frame dimension, and rough opening for the OPG1900 series storefront system. The drawing coordinates with architectural reference sheet 2/A8.16.
D.L.O. ROUGH OPENING FRAME DIMENSION Arch Ref: SYSTEM: JAMB DETAIL 1 2/A8.16 OPG1900 SERIES
