A parallel curb ramp features a landing five or six feet in width with a maximum cross slope of two percent. Flanking ramps slope downward at a maximum of 8.3 percent toward the detectable warning surface. The landing area requires a maximum two percent slope in both directions. The pay limit encompasses the entire ramp and transition zones.

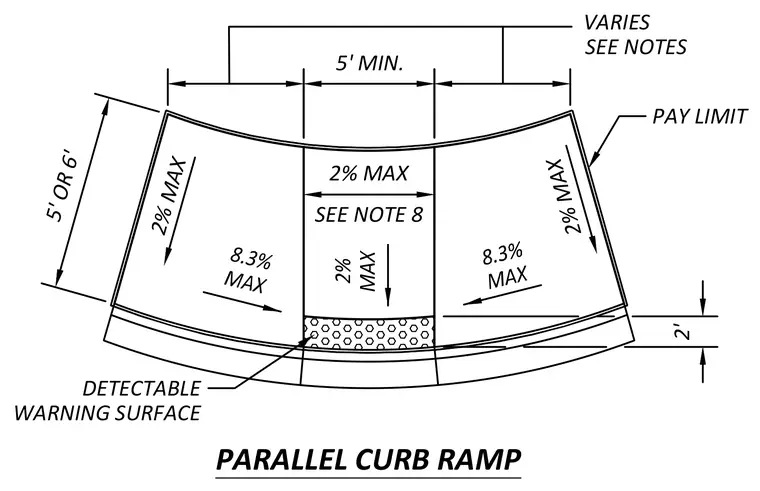

PARALLEL CURB RAMP 5' OR 6' VARIES SEE NOTES 2% MAX 8.3% MAX 8.3% MAX 2' 2% MAX 5' MIN. DETECTABLE WARNING SURFACE SEE NOTE 8 2% MAX 2% MAX PAY LIMIT
