Civil · C-AFR29

Detectable Warning Detail

Elements

About this detail

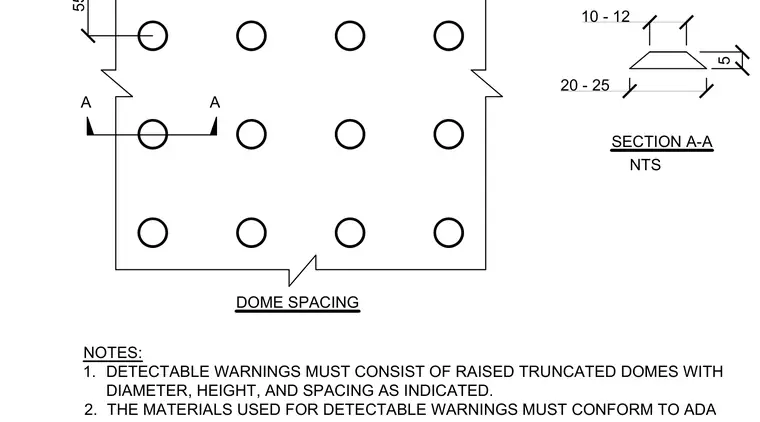

Detectable warnings consist of raised truncated domes with diameter, height, and spacing indicated in the plan and section views. The materials used for detectable warnings must conform to ADA standards. Dome spacing dimensions range from 55 to 80, with individual dome top diameters between 10 and 12, base diameters between 20 and 25, and a height of 5.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
