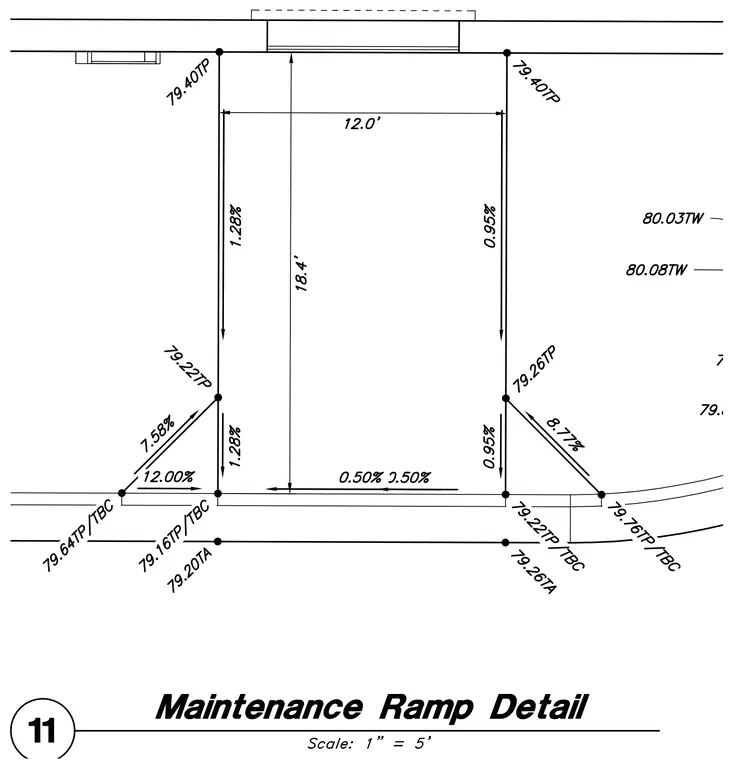

A maintenance ramp layout features a width of 12.0 feet and length of 18.4 feet. Longitudinal slopes are indicated at 1.28% and 0.95%, with transverse slopes at 0.50% and side slopes ranging up to 12.00%, 7.58%, and 8.77%. Top of pavement, top of curb, and top of asphalt elevations are marked throughout the ramp geometry.
