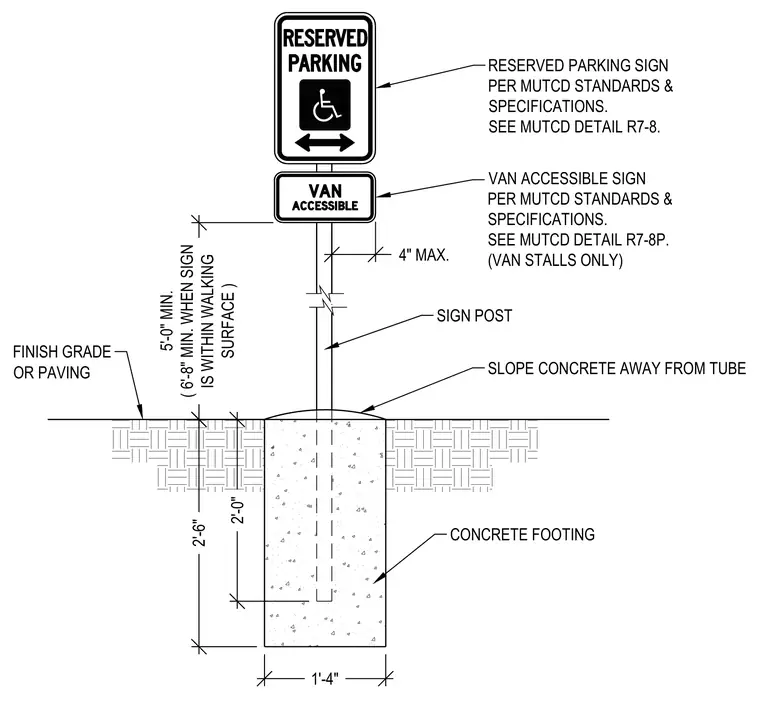

The assembly consists of a vertical sign post embedded into a concrete footing below finish grade or paving. The concrete surface at the top of the footing is sloped away from the tube to shed water. A reserved parking sign and an optional van accessible plaque are mounted to the upper portion of the post according to MUTCD standards. The bottom of the sign panel maintains a minimum height clearance above the finish grade or walking surface.
5'-0" MIN. ( 6'-8" MIN. WHEN SIGN IS WITHIN WALKING SURFACE ) 2'-6" 2'-0" 1'-4" RESERVED PARKING SIGN PER MUTCD STANDARDS & SPECIFICATIONS. SEE MUTCD DETAIL R7-8. VAN ACCESSIBLE SIGN PER MUTCD STANDARDS & SPECIFICATIONS. SEE MUTCD DETAIL R7-8P. (VAN STALLS ONLY) SIGN POST SLOPE CONCRETE AWAY FROM TUBE CONCRETE FOOTING FINISH GRADE OR PAVING 4" MAX.
