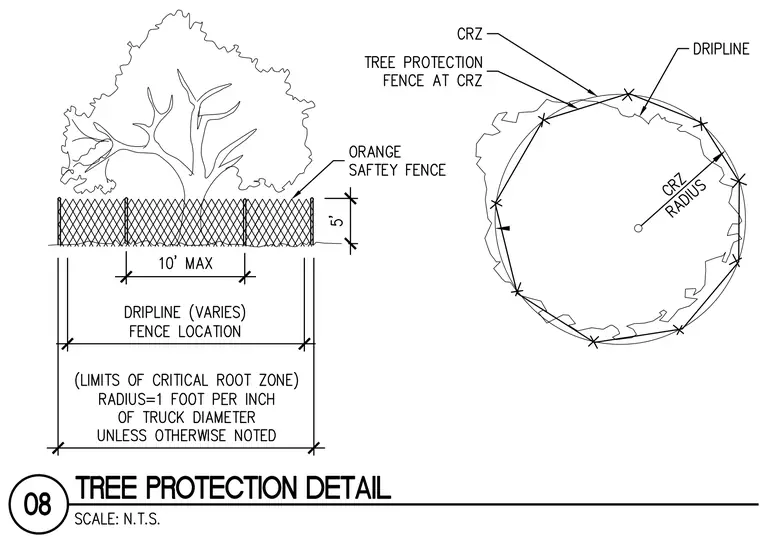

Tree protection fencing is established at the critical root zone or dripline using a five-foot orange safety fence with posts spaced at a maximum of ten feet on center. The critical root zone radius is calculated as one foot per inch of trunk diameter unless otherwise noted on the civil plans.
