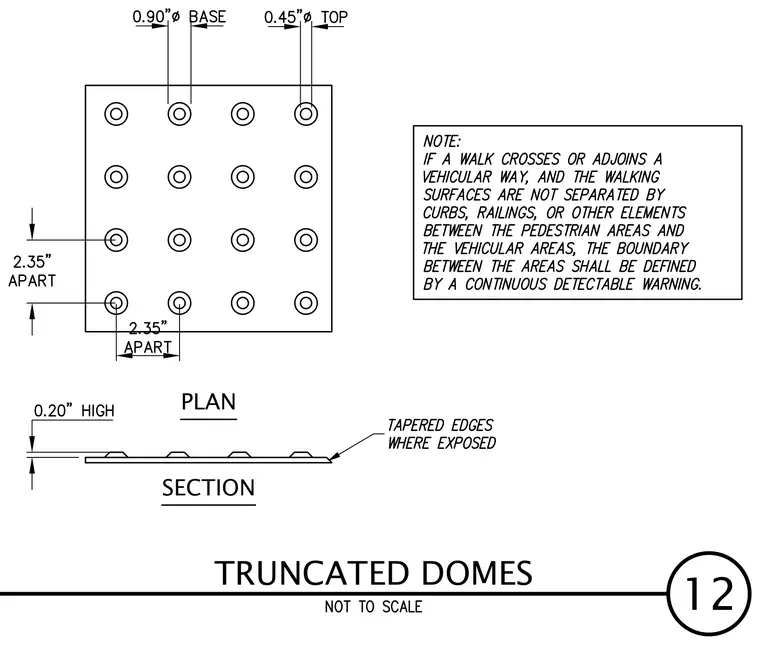

Truncated domes feature a base diameter of 0.90 inches and a top diameter of 0.45 inches, standing 0.20 inches high. The domes are spaced 2.35 inches apart center-to-center in a square grid pattern. Exposed edges are tapered. A continuous detectable warning is required where a walk crosses or adjoins a vehicular way without intervening curbs or railings.
