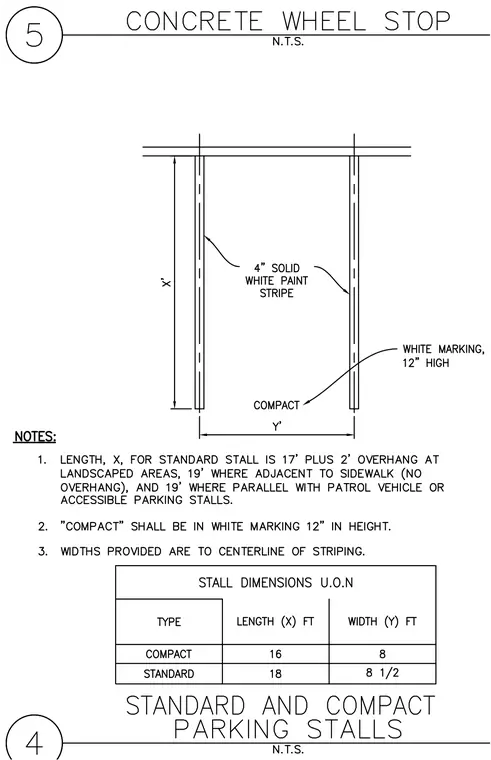

Parking stall configurations include length dimensions of sixteen feet for compact stalls and eighteen feet for standard stalls, with widths measured to the centerline of striping at eight feet for compact and eight and a half feet for standard. White markings twelve inches in height designate compact stalls, paired with four-inch solid white paint striping. Length varies depending on adjacent conditions such as landscaped areas, sidewalks, or parallel patrol vehicle and accessible stalls.
