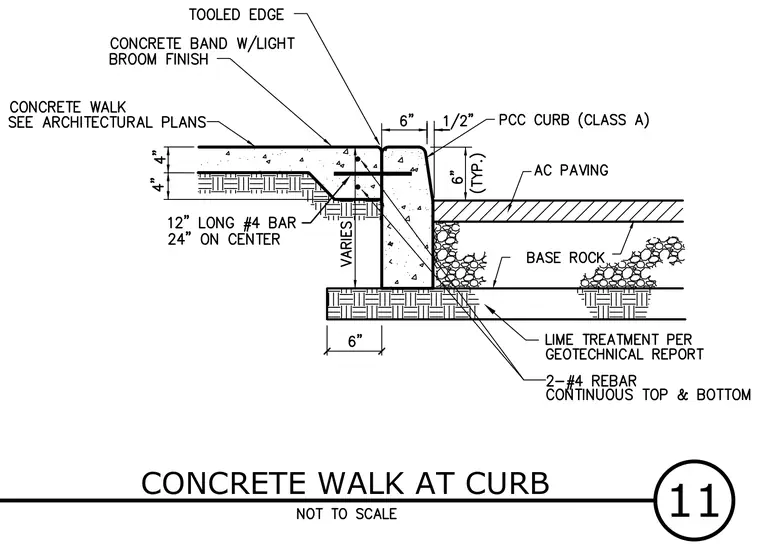

A concrete walk transitions into a Portland cement concrete curb alongside asphalt concrete paving. The concrete walk features a four-inch thickness with a concrete band and light broom finish, accompanied by a tooled edge adjacent to the curb. The Portland cement concrete curb has a six-inch typical height and a half-inch separation, bearing on base rock with lime treatment per the geotechnical report. Reinforcing includes twelve-inch long number four bars at twenty-four inches on center and two continuous number four rebar top and bottom.
