Architectural · C-9XKAB

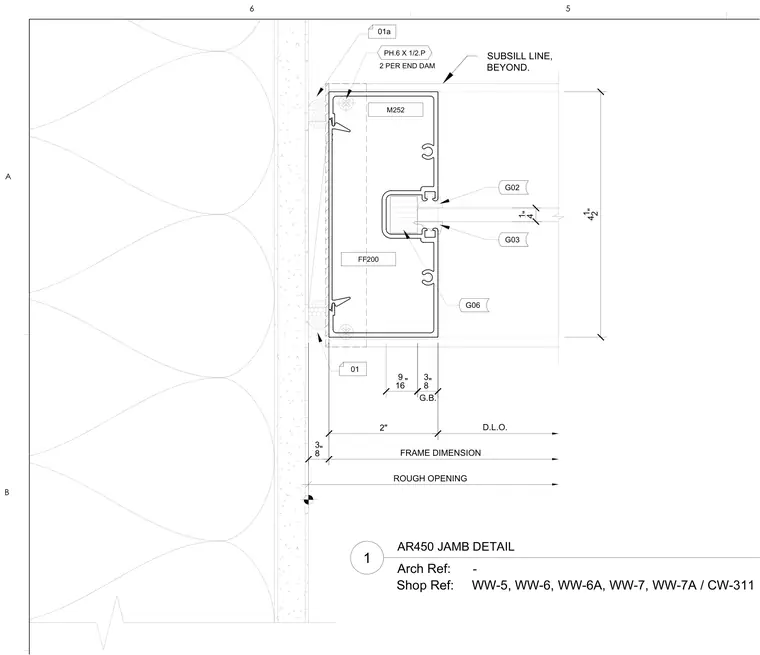

Curtain Wall Jamb Detail at Rough Opening

Elements

About this detail

An aluminum curtain wall jamb profile connects to the building structure with designated rough opening, frame dimension, and daylight opening tolerances. Glazing is secured using internal and external gaskets with glass stops. Fasteners secure the framing components with end dam and sub-sill alignments.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
