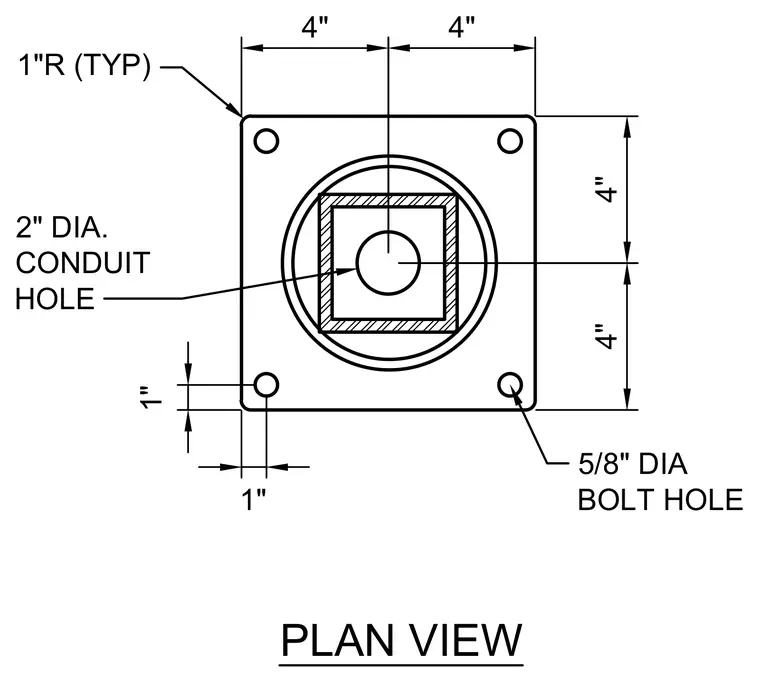

A square steel base plate features a central hollow structural section column welded in place, complete with a two-inch diameter conduit hole at the center. Four five-eighths inch diameter bolt holes are positioned at the corners with one-inch edge clearances and four-inch spacing dimensions. The plate corners are detailed with a one-inch typical radius.
1" 1" 4" 4" 4" 4" 2" DIA. CONDUIT HOLE 1"R (TYP) 5/8" DIA BOLT HOLE PLAN VIEW
