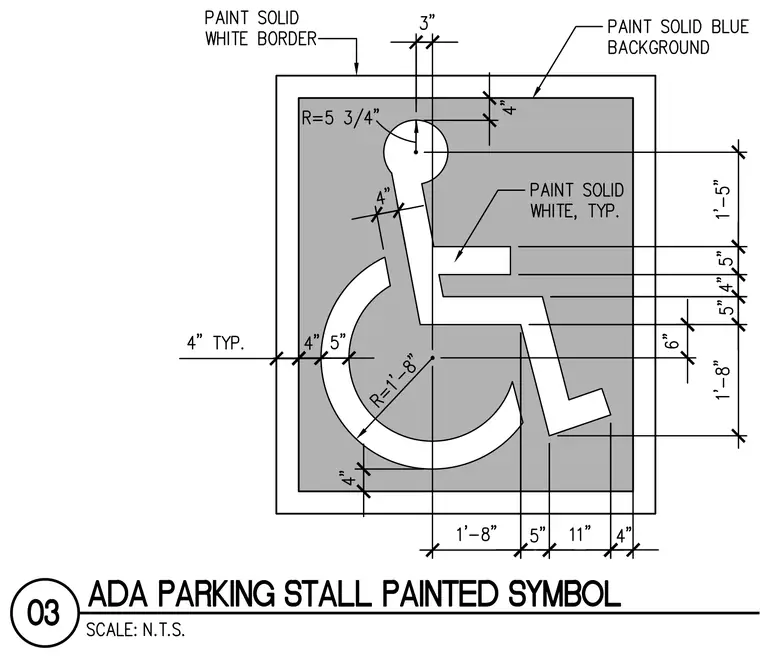

The accessible parking symbol features a solid blue painted background enclosed within a solid white border, with dimensions specifying a radius of 1 foot 8 inches for the wheelchair arc and 5 and 3/4 inches for the head. The white painted figure includes typical 4-inch spacing and various vertical and horizontal dimensions ranging from 4 inches to 1 foot 5 inches to layout the wheel, torso, and legs accurately.
