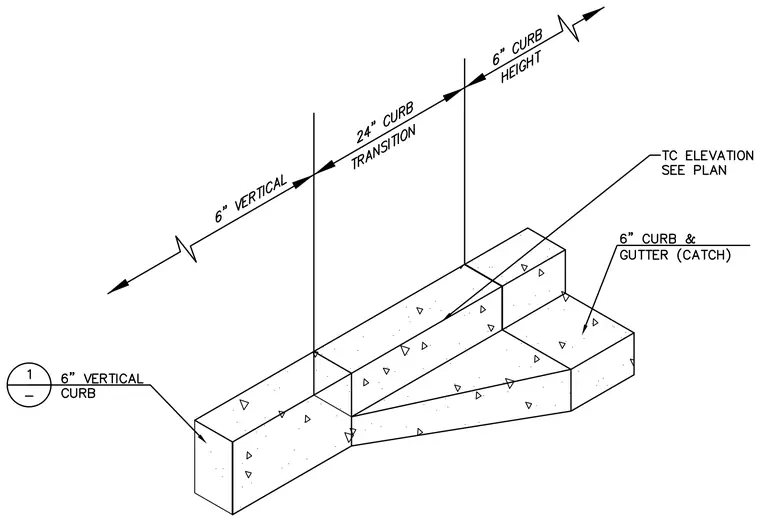

A concrete curb transition connects a six-inch vertical curb profile to a twenty-four-inch transition segment and continues at a standard six-inch curb height. An intersecting six-inch curb and gutter catch connection ties into the main curb run. Top of curb elevations are sized per plan.
