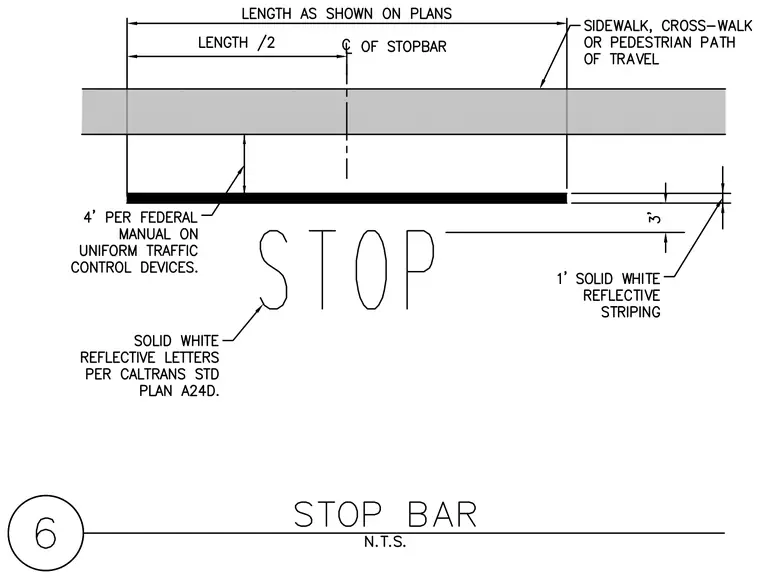

A one-foot solid white reflective striping forms the stop bar at a distance of four feet from the sidewalk, cross-walk, or pedestrian path of travel per the federal manual on uniform traffic control devices. Solid white reflective letters spelling STOP are placed per Caltrans standard plan A24D. The overall length of the stop bar spans as shown on plans, centered on the stopbar centerline.
