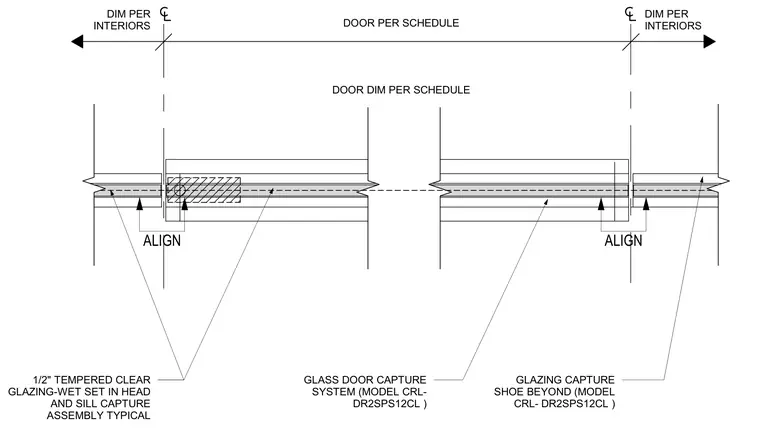

The assembly features a glass door capture system model CRL-DR2SPS12CL supporting one-half inch tempered clear glazing wet-set in a head and sill capture assembly. A typical glazing capture shoe model CRL-DR2SPS12CL is positioned beyond the primary framing. Dimensions are coordinated per the interiors door schedule with specified alignment marks.
DIM PER INTERIORS DOOR PER SCHEDULE DOOR DIM PER SCHEDULE GLASS DOOR CAPTURE SYSTEM (MODEL CRL- DR2SPS12CL ) 1/2" TEMPERED CLEAR GLAZING-WET SET IN HEAD AND SILL CAPTURE ASSEMBLY TYPICAL GLAZING CAPTURE SHOE BEYOND (MODEL CRL- DR2SPS12CL ) ALIGN ALIGN DIM PER INTERIORS
