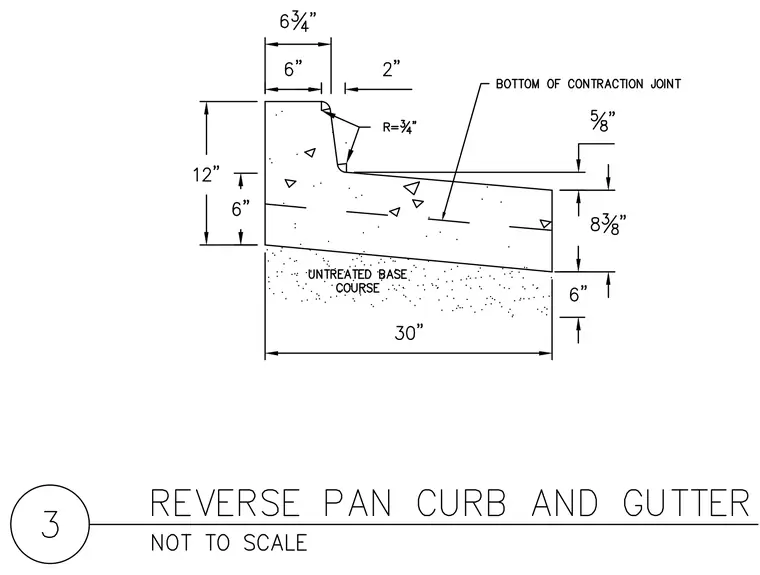

A reverse pan concrete curb and gutter assembly rests on an untreated base course. The curb measures twelve inches in total height at the back, with a six-inch top width and a three-quarter-inch radius at the gutter transition. The overall width of the pan and curb section is thirty inches, with a gutter depth dimensioned at eight and three-eighths inches on the outer edge and a five-eighth-inch slope. A contraction joint is located within the concrete mass, positioned six inches above the bottom of the section.
