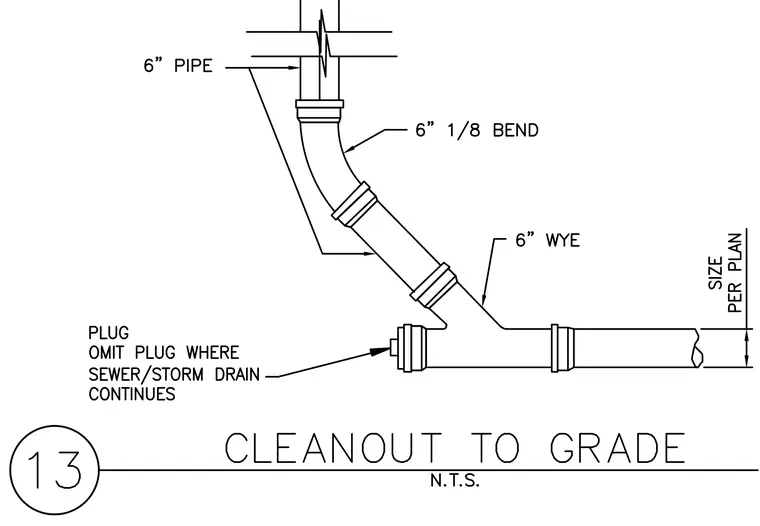

A six-inch vertical pipe transitions through a six-inch one-eighth bend and a six-inch wye fitting to a horizontal run sized per plan. A plug is installed at the wye branch and omitted where the sewer or storm drain continues.
