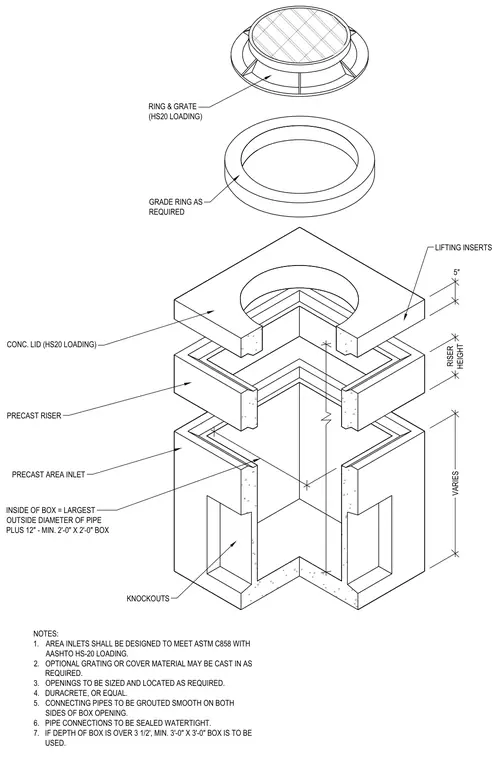

A precast concrete area inlet assembly is designed for AASHTO HS-20 loading conditions. The unit consists of a precast base box featuring knockouts for pipe connections, a variable-height precast riser, and a precast concrete lid with lifting inserts. A grade ring sits atop the lid to support a cast-iron ring and grate assembly. Pipe connections are specified to be watertight and grouted smooth on both sides of the box opening. Box dimensions must provide clearance matching the largest outside diameter of the connecting pipe plus twelve inches, with a minimum size of two feet by two feet or three feet by three feet depending on the total depth.
VARIES 5" RISER HEIGHT LIFTING INSERTS RING & GRATE (HS20 LOADING) GRADE RING AS REQUIRED CONC. LID (HS20 LOADING) PRECAST RISER PRECAST AREA INLET INSIDE OF BOX = LARGEST OUTSIDE DIAMETER OF PIPE PLUS 12" - MIN. 2'-0" X 2'-0" BOX KNOCKOUTS NOTES: 1. AREA INLETS SHALL BE DESIGNED TO MEET ASTM C858 WITH AASHTO HS-20 LOADING. 2. OPTIONAL GRATING OR COVER MATERIAL MAY BE CAST IN AS REQUIRED. 3. OPENINGS TO BE SIZED AND LOCATED AS REQUIRED. 4. DURACRETE, OR EQUAL. 5. CONNECTING PIPES TO BE GROUTED SMOOTH ON BOTH SIDES OF BOX OPENING. 6. PIPE CONNECTIONS TO BE SEALED WATERTIGHT. 7. IF DEPTH OF BOX IS OVER 3 1/2', MIN. 3'-0" X 3'-0" BOX IS TO BE USED.
