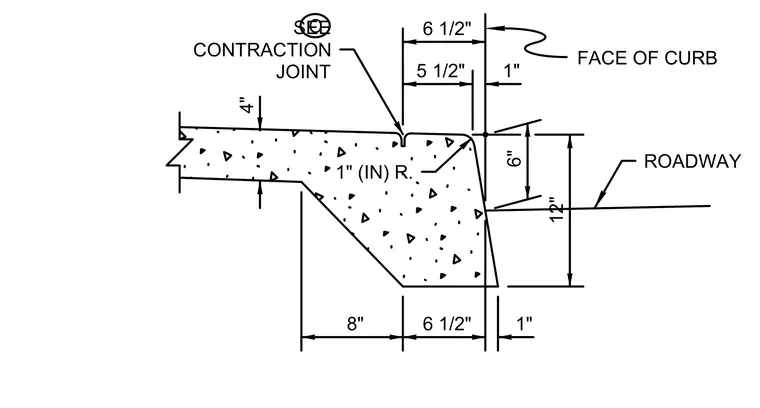

A cast-in-place concrete curb profile has a twelve-inch total height and a six-inch vertical face adjacent to the roadway. The top of the curb features a one-inch inside radius and a six-and-one-half-inch overall top width with a five-and-one-half-inch gutter pan section. A contraction joint is located in the top surface at a specified offset from the face of the curb. The base of the curb extends eight inches horizontally with a four-inch minimum thickness at the flag.
6" 1" 5 1/2" 8" 4" 1" 6 1/2" FACE OF CURB ROADWAY 6 1/2" C SEE CONTRACTION JOINT 12" 1" (IN) R.
