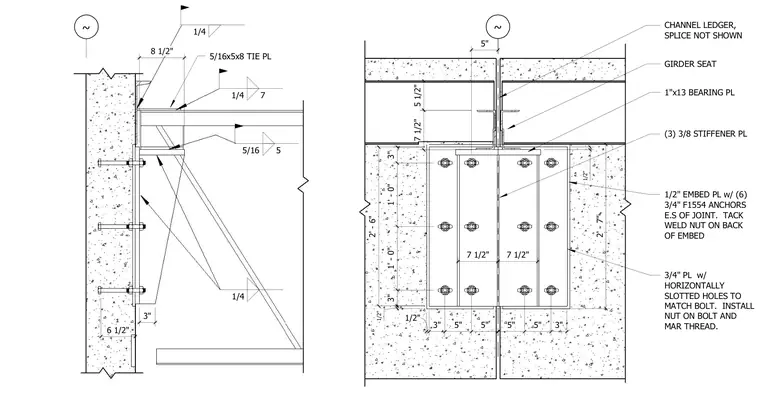

A structural steel girder seat is anchored to a precast concrete panel joint using a half-inch embed plate with six three-quarter-inch ASTM F1554 anchors on each side of the joint, where nuts are tack-welded on the back of the embed. A three-quarter-inch plate featuring horizontally slotted holes matches the anchor bolts, and nuts are installed on the bolts with marred threads. A one-by-thirteen-inch bearing plate and three three-eighths-inch stiffener plates support the girder seat channel ledger, with splices omitted from view. A five-sixteenths-by-five-by-eight-inch tie plate ties the assembly together, secured with quarter-inch and five-sixteenths fillet welds.
~ ~ 5" 5 1/2" 7 1/2" 2' - 7" 3" 1' - 0" 1' - 0" 3" 1/2" 1/2" 3" 5" 5" 5" 5" 3" 6 1/2" 1/2" EMBED PL w/ (6) 3/4" F1554 ANCHORS E.S OF JOINT. TACK WELD NUT ON BACK OF EMBED 3/4" PL w/ HORIZONTALLY SLOTTED HOLES TO MATCH BOLT. INSTALL NUT ON BOLT AND MAR THREAD. 2' - 6" 1/2" 1/4 1"x13 BEARING PL (3) 3/8 STIFFENER PL GIRDER SEAT CHANNEL LEDGER, SPLICE NOT SHOWN 7 1/2" 7 1/2" 3" 8 1/2" 5/16x5x8 TIE PL 1/4 7 1/4 5/16 5
