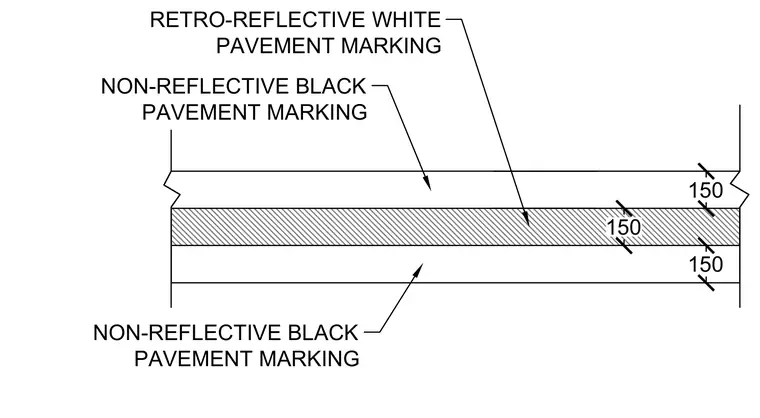

A towway centerline pavement marking layout with parallel striping features a central retro-reflective white pavement marking flanked by non-reflective black pavement markings on each side, with each individual stripe dimensioned with a width of 150 millimeters.
NON-REFLECTIVE BLACK PAVEMENT MARKING NON-REFLECTIVE BLACK PAVEMENT MARKING RETRO-REFLECTIVE WHITE PAVEMENT MARKING 150 150 150
