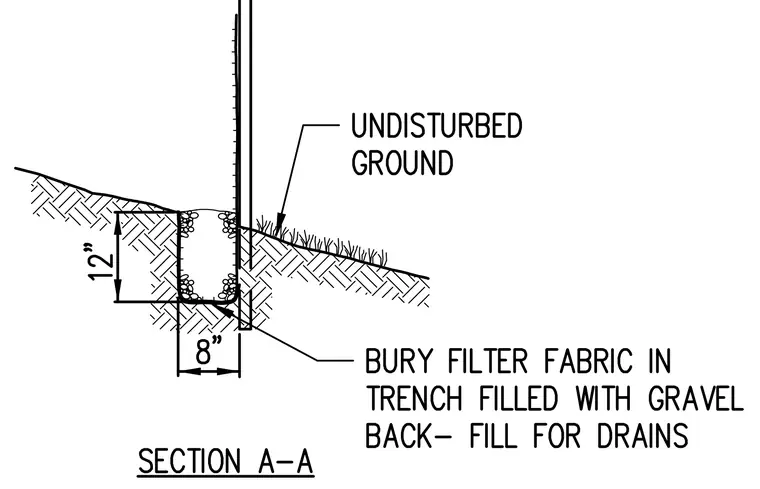

A subsurface drainage trench is excavated into undisturbed ground with an 8-inch width and a 12-inch depth. The trench contains a gravel backfill wrapped in filter fabric. A vertical barrier extends downward through the trench assembly into the subgrade below.
