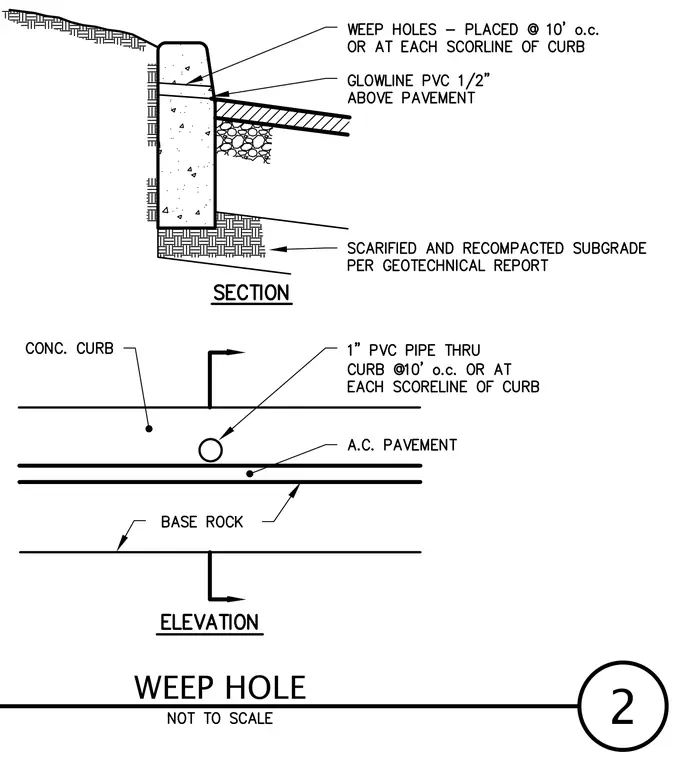

A concrete curb drainage assembly incorporates weep holes spaced at ten feet on center or at each scoreline. A one-inch PVC pipe runs through the curb with its flowline positioned one-half inch above the adjacent asphalt concrete pavement. The subgrade beneath the base rock is scarified and recompacted in accordance with the geotechnical report.
