The layout procedure for the upper bolt-hole pattern on a braced frame gusset plate connection. The upper-most bolt-hole is established at a distance L_bh from the lower-most bolt-hole, utilizing a floating dimension rather than L_wp-h at the upper end of the brace. The upper bolt-hole pattern is laid out similar to the lower pattern per the referenced details. Additional provisions note the requirement for a concrete blockout and reference specific tensioning procedures.

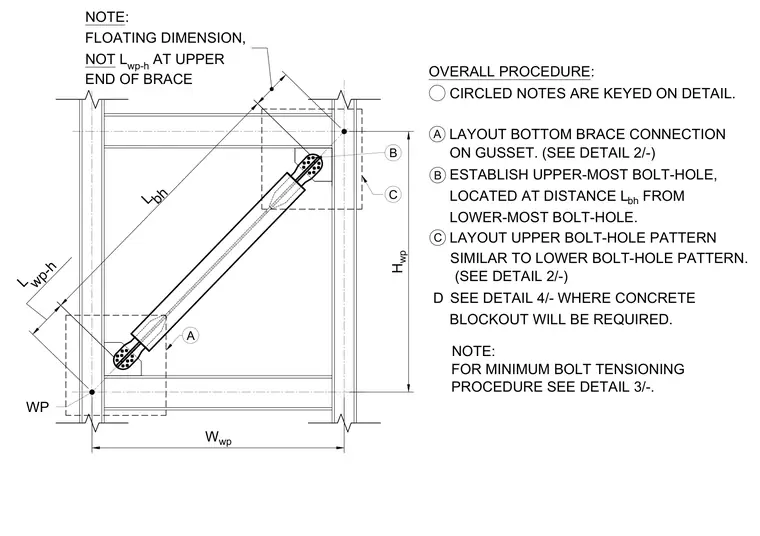

CIRCLED NOTES ARE KEYED ON DETAIL. A LAYOUT BOTTOM BRACE CONNECTION OVERALL PROCEDURE: B ESTABLISH UPPER-MOST BOLT-HOLE, C LAYOUT UPPER BOLT-HOLE PATTERN FOR MINIMUM BOLT TENSIONING LOCATED AT DISTANCE L bh FROM SIMILAR TO LOWER BOLT-HOLE PATTERN. PROCEDURE SEE DETAIL 3/-. ON GUSSET. (SEE DETAIL 2/-) WP L bh L wp-h NOTE: FLOATING DIMENSION, NOT L wp-h AT UPPER END OF BRACE B W wp H wp LOWER-MOST BOLT-HOLE. (SEE DETAIL 2/-) C A NOTE: SEE DETAIL 4/- WHERE CONCRETE BLOCKOUT WILL BE REQUIRED. D C> - H i 7 | -f o T \ O -o l # 7 H- J o X X' _ ~1 %<J / l l I r i j
