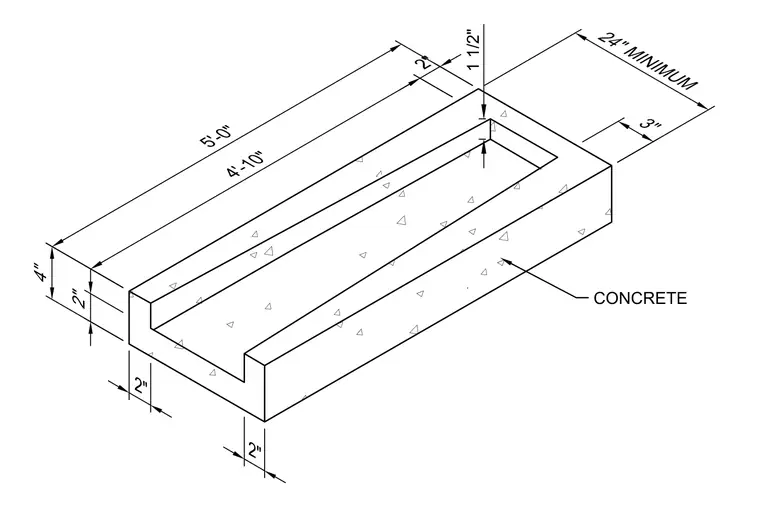

A precast concrete channel block features a minimum width of twenty-four inches, a length of five feet, and an overall height of four inches. The internal recessed channel measures four feet and ten inches long by three inches wide, with a depth of two inches. The surrounding concrete walls incorporate two-inch thicknesses and a top recess edge of one and one-half inches.
