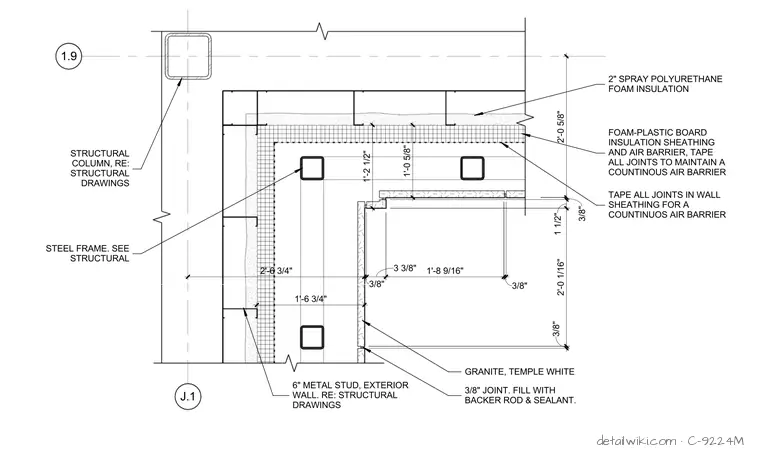

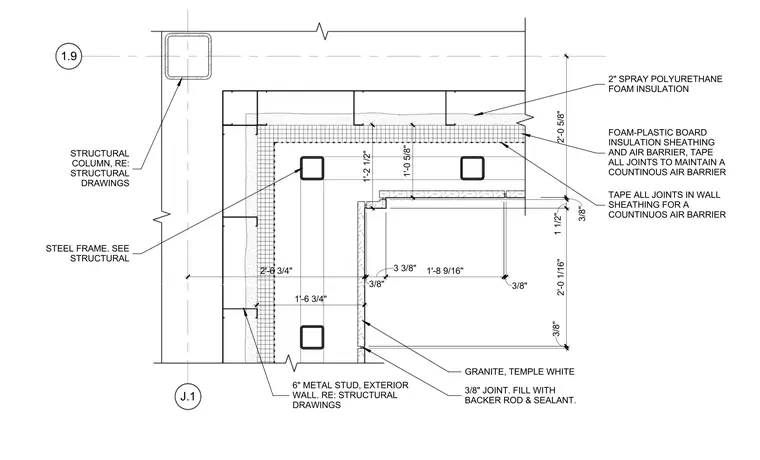

This plan detail shows a granite stone veneer cladding system at an inside building corner with a structural steel frame and six-inch metal stud exterior walls. The cavity features two inches of spray polyurethane foam insulation and foam-plastic board insulation sheathing acting as an air barrier, with all sheathing joints taped for continuity. A three-eighths-inch joint filled with backer rod and sealant occurs at the granite corner junction. Structural columns and framing members are referenced to the structural drawings.
J.1 1.9 1 1/2" 3/8" 3 3/8" 3/8" 2'-6 3/4" 2'-0 5/8" 1'-8 9/16" 3/8" 2'-0 1/16" 3/8" GRANITE, TEMPLE WHITE STRUCTURAL COLUMN, RE: STRUCTURAL DRAWINGS 2" SPRAY POLYURETHANE FOAM INSULATION FOAM-PLASTIC BOARD INSULATION SHEATHING AND AIR BARRIER, TAPE ALL JOINTS TO MAINTAIN A COUNTINOUS AIR BARRIER TAPE ALL JOINTS IN WALL SHEATHING FOR A COUNTINUOS AIR BARRIER 3/8" JOINT. FILL WITH BACKER ROD & SEALANT. 6" METAL STUD, EXTERIOR WALL. RE: STRUCTURAL DRAWINGS 1'-6 3/4" 1'-2 1/2" 1'-0 5/8" STEEL FRAME. SEE STRUCTURAL
