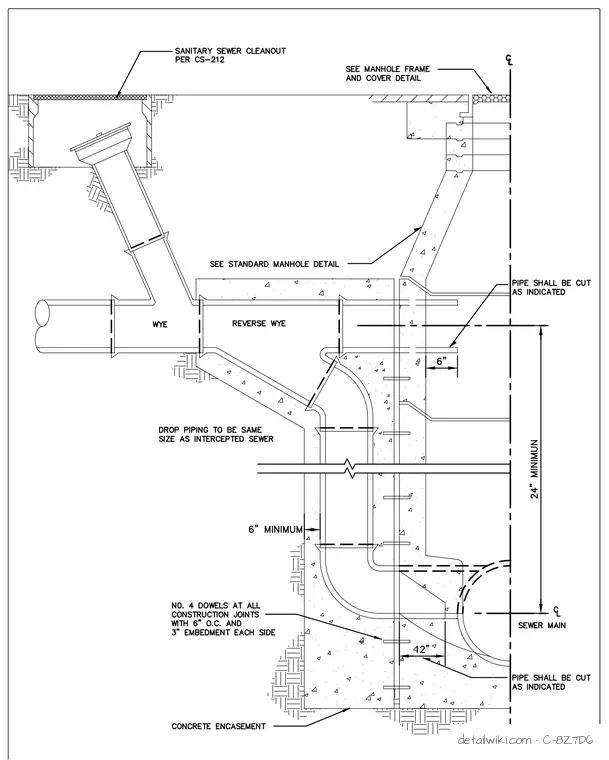

Sanitary sewer drop manhole connection utilizing a wye and reverse wye configuration for flow transition into the manhole structure. Drop piping matches the intercepted sewer size, maintaining a minimum 24-inch vertical clearance between the incoming pipe and the sewer main. Concrete encasement at the base includes number 4 dowels at all construction joints, spaced at 6 inches on center with 3 inches of embedment on each side. Pipe penetrations into the manhole wall are cut as indicated, maintaining a 6-inch minimum clearance from the wall face. A sanitary sewer cleanout is provided per standard CS-212, and the manhole frame and cover are installed per the standard manhole detail.
