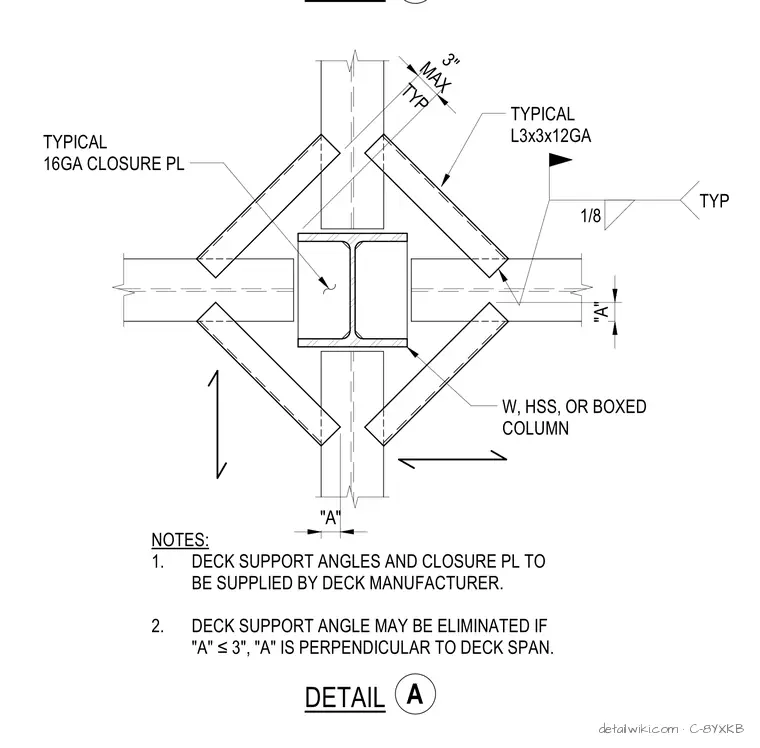

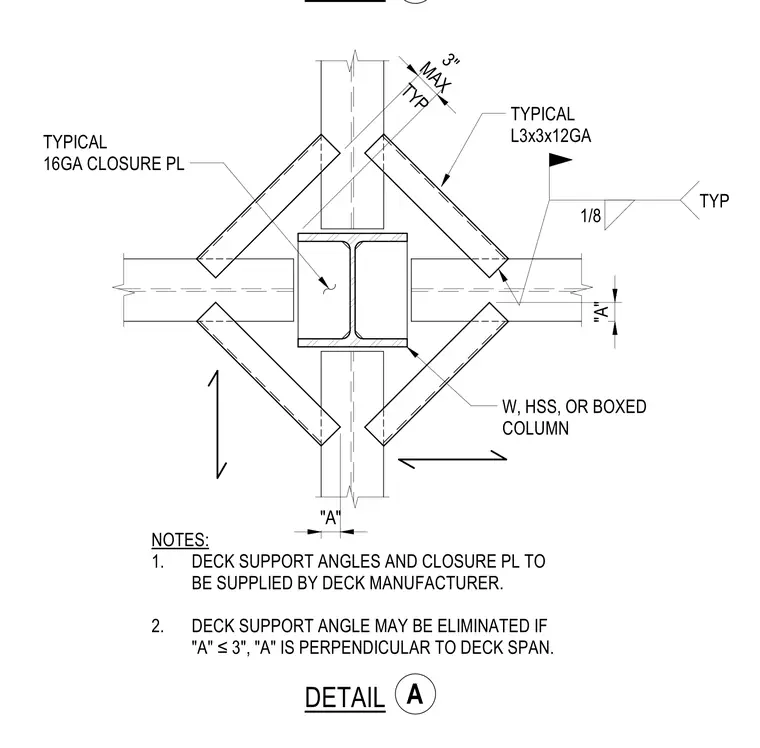

Typical deck support angles and closure plates frame around a wide flange, hollow structural section, or boxed column. The assembly utilizes typical 3-inch by 3-inch by 12-gauge angles welded to the structural members with typical one-eighth inch fillet welds. A typical 16-gauge closure plate spans the junction between framing components. The dimension 'A' indicates the clearance gap, which can eliminate the deck support angle when three inches or less and perpendicular to the deck span. Deck support angles and closure plates are supplied by the deck manufacturer per project notes.
NOTES: 1. DECK SUPPORT ANGLES AND CLOSURE PL TO BE SUPPLIED BY DECK MANUFACTURER. 2. DECK SUPPORT ANGLE MAY BE ELIMINATED IF "A" ≤3", "A" IS PERPENDICULAR TO DECK SPAN. TYPICAL 16GA CLOSURE PL TYPICAL L3x3x12GA W, HSS, OR BOXED COLUMN DETAIL DETAIL "A" "A" TYP 3" MAX A 1/8 TYP
