Gusset Plate Connection at Base Plate

Materials

Steel

Elements

Columns Connections / Plates

Connections

Gusset Plate Base Plate / Anchorage Bolted Connection

About this detail

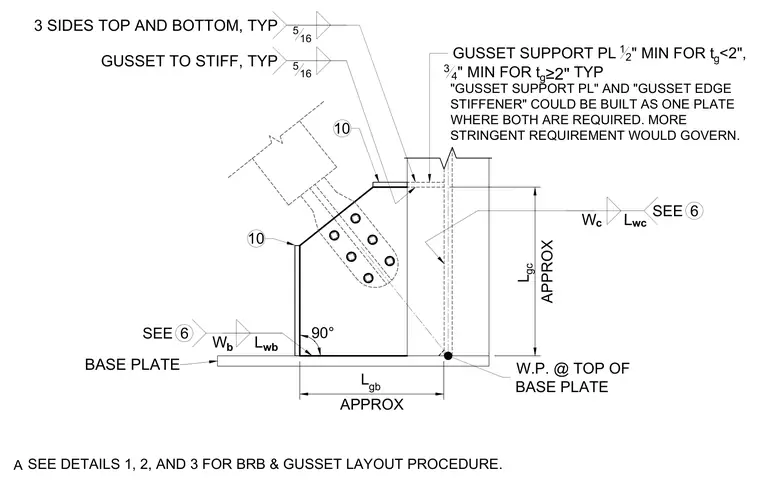

A gusset plate connection is mounted to a base plate and column support. The gusset plate features a bolted connection with multiple rows of fasteners and edge stiffeners welded on three sides with five-sixteenths inch fillet welds. A gusset support plate is specified at a minimum of one-half inch thickness for gusset thicknesses under two inches, and three-quarters inch for thicknesses greater than or equal to two inches. The gusset support plate and edge stiffener may be combined into a single plate where both are required, with the more stringent requirement governing. Additional notes reference working points at the top of the base plate and direct the builder to secondary details for buckling-restrained brace and gusset layout procedures.
