C-8PRZE — Utility Gate Detail

Civil · C-8PRZE

Utility Gate Detail

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Sheet: C5
Discipline: Civil

Materials

Brick Masonry / CMU Metal (misc.)

Elements

Anchors / Embeds Entrances Facades / Cladding Walls Waterproofing / Flashing

Connections

Base Plate / Anchorage

Text on the drawing

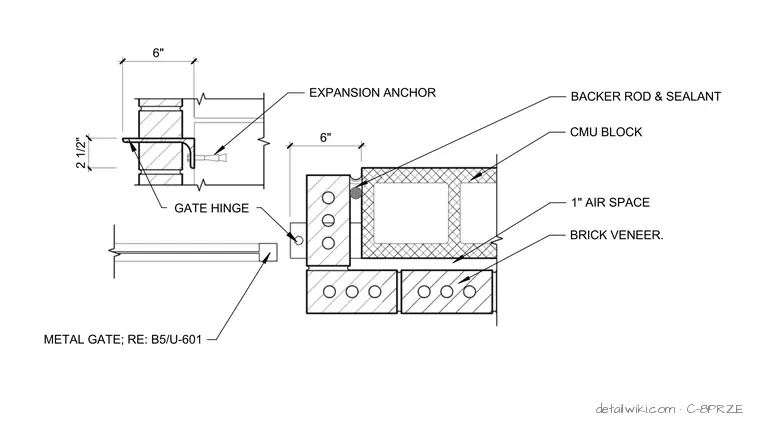

CMU BLOCK BRICK VENEER. METAL GATE; RE: B5/U-601 1" AIR SPACE BACKER ROD & SEALANT GATE HINGE 6" 2 1/2" EXPANSION ANCHOR 6"
