Light-Duty Rigid Pavement Section

Materials

Elements

About this detail

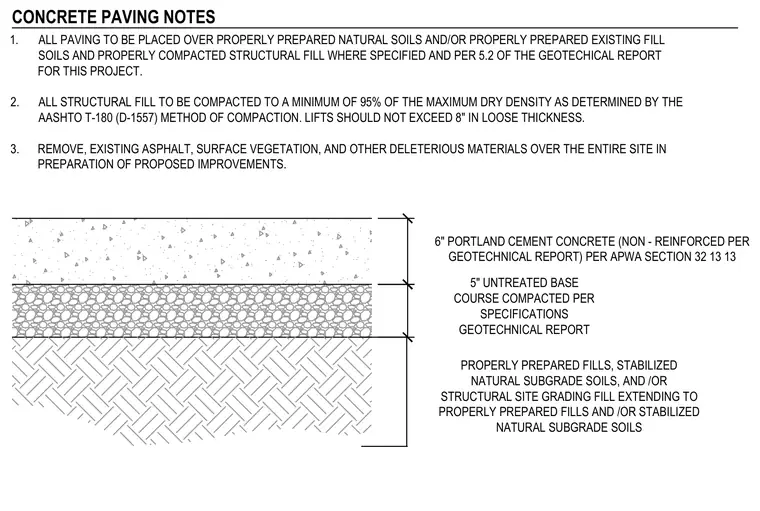

This light-duty rigid pavement detail consists of a six-inch non-reinforced Portland cement concrete slab placed over a five-inch untreated base course. The base course is compacted in accordance with project specifications and geotechnical recommendations. The entire assembly rests on properly prepared natural soils, existing fill soils, or structural site grading fill extending to stabilized subgrade soils. All structural fill must be compacted to a minimum of ninety-five percent of the maximum dry density determined by the AASHTO T-180 method with lifts not exceeding eight inches in loose thickness. Existing asphalt, surface vegetation, and deleterious materials are removed prior to site improvements.
