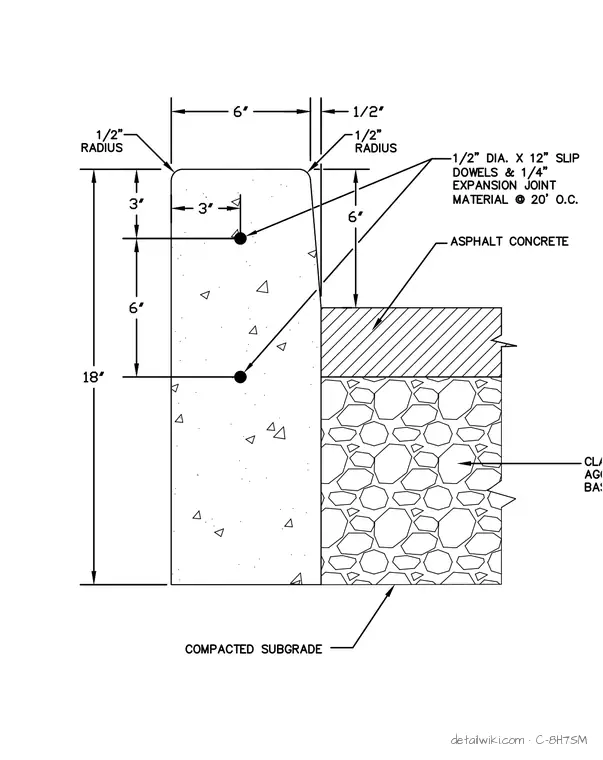

This eighteen-inch tall concrete curb features a six-inch wide top with half-inch radii at the edges. The assembly includes half-inch diameter by twelve-inch long slip dowels and quarter-inch expansion joint material spaced at twenty feet on center. The curb is positioned against asphalt concrete pavement, which sits atop a layer of aggregate base and compacted subgrade.
