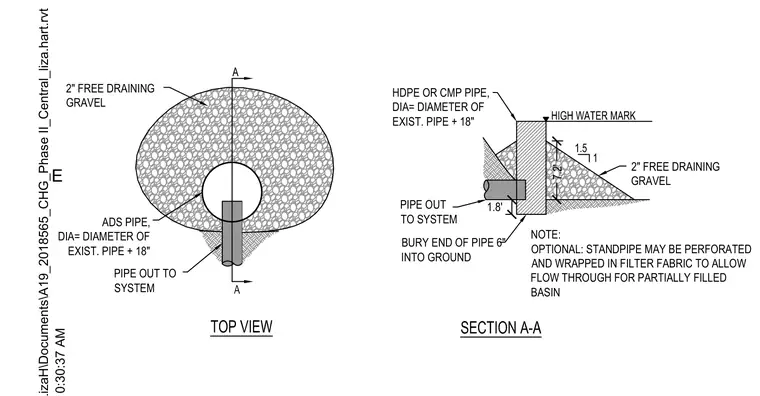

A temporary basin outlet protection assembly consists of a high-density polyethylene or corrugated metal pipe riser with a diameter equal to the existing pipe plus eighteen inches, surrounded by a two-inch free draining gravel bed. An outlet pipe connects to the drainage system, with the end buried six inches into the ground. The standpipe features a high water mark and an optional perforated configuration wrapped in filter fabric to allow flow through for a partially filled basin.
SECTION A-A TOP VIEW A A PIPE OUT TO SYSTEM BURY END OF PIPE 6" INTO GROUND 2" FREE DRAINING GRAVEL 1.5 1 HIGH WATER MARK HDPE OR CMP PIPE, DIA= DIAMETER OF EXIST. PIPE + 18" NOTE: OPTIONAL: STANDPIPE MAY BE PERFORATED AND WRAPPED IN FILTER FABRIC TO ALLOW FLOW THROUGH FOR PARTIALLY FILLED BASIN 7.2' 1.8' PIPE OUT TO SYSTEM ADS PIPE, DIA= DIAMETER OF EXIST. PIPE + 18" 2" FREE DRAINING GRAVEL E
