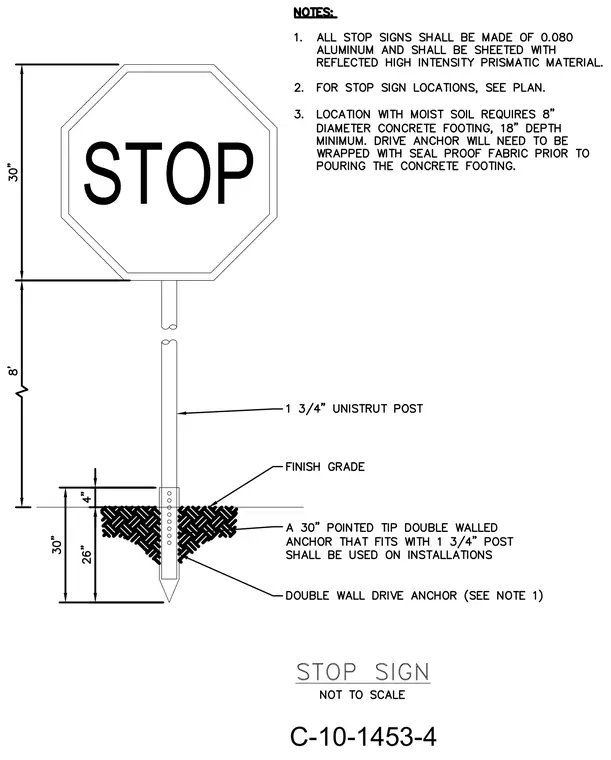

The assembly consists of a thirty-inch octagonal stop sign made of zero-point-zero-eighty-inch aluminum with a high-intensity prismatic reflective sheet, mounted on a one-and-three-quarter-inch Unistrut post. The post is supported by a thirty-inch pointed-tip double-walled drive anchor embedded twenty-six inches below finish grade. Locations with moist soil require an eight-inch diameter concrete footing with an eighteen-inch depth minimum, and the drive anchor must be wrapped with seal-proof fabric prior to pouring concrete.
