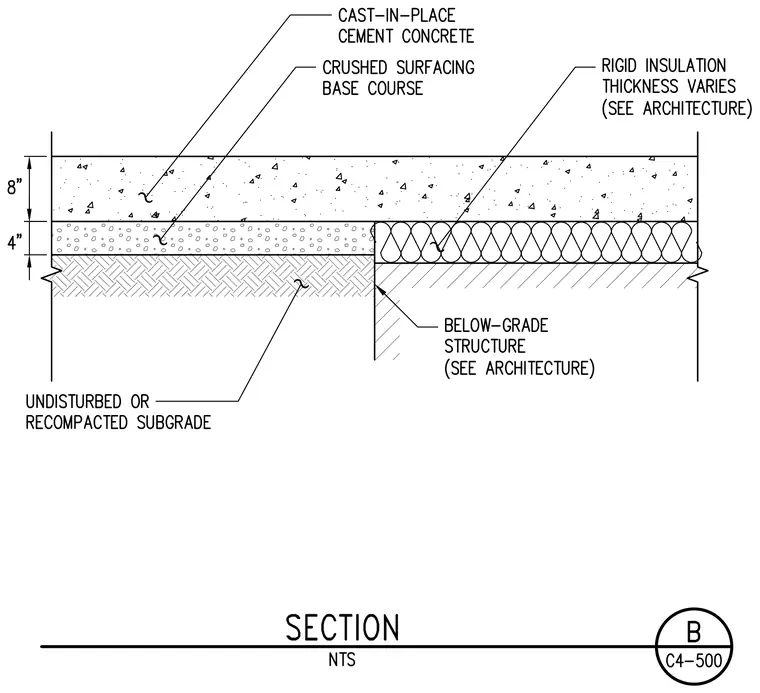

An eight-inch cast-in-place cement concrete slab bears directly on a four-inch crushed surfacing base course. The base course rests on undisturbed or recompacted subgrade. Adjacent to the below-grade structure, rigid insulation of varying thickness bears on the subgrade and transitions beneath the concrete slab.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
