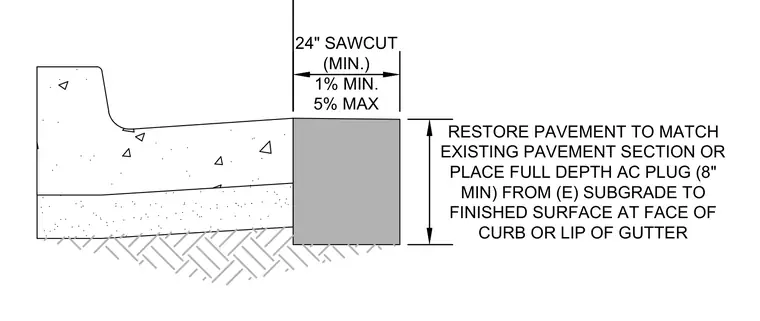

An asphalt concrete pavement repair detail shows an eight-inch minimum full-depth AC plug placed from the existing subgrade to the finished surface at the face of the curb or lip of the gutter. A minimum twenty-four-inch sawcut is specified alongside the patch area. Slope requirements indicate a one percent minimum and five percent maximum gradient. The existing pavement section is restored to match the surrounding paving.
24" SAWCUT (MIN.) 1% MIN. 5% MAX RESTORE PAVEMENT TO MATCH EXISTING PAVEMENT SECTION OR PLACE FULL DEPTH AC PLUG (8" MIN) FROM (E) SUBGRADE TO FINISHED SURFACE AT FACE OF CURB OR LIP OF GUTTER
