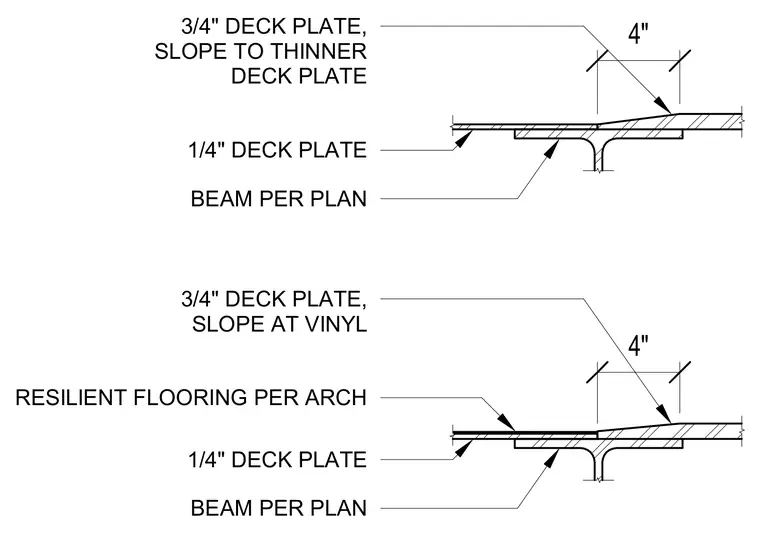

A three-quarter-inch thick deck plate transitions with a slope down to a one-quarter-inch thick deck plate over a supporting steel beam sized per plan. A resilient flooring layer sits atop the one-quarter-inch deck plate where indicated.
1/4" DECK PLATE RESILIENT FLOORING PER ARCH 3/4" DECK PLATE, SLOPE AT VINYL BEAM PER PLAN 1/4" DECK PLATE 3/4" DECK PLATE, SLOPE TO THINNER DECK PLATE BEAM PER PLAN 4" 4"
