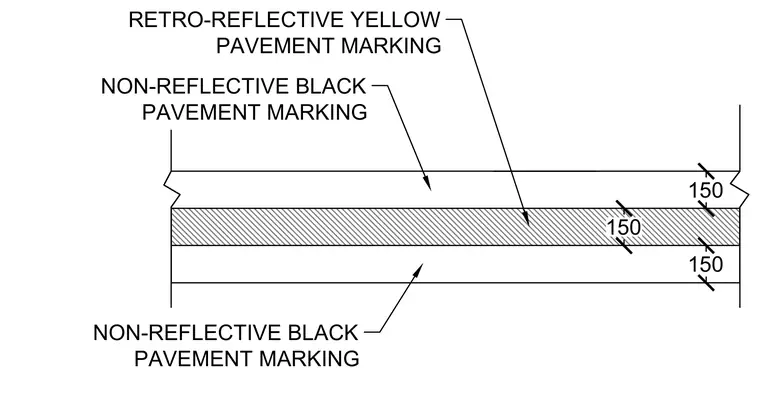

Taxilane centerline marking consisting of a central retro-reflective yellow pavement marking flanked by non-reflective black pavement markings on each side. Each marking stripe is dimensioned at 150 millimeters in width. The configuration provides high visibility for aircraft taxiway guidance.
NON-REFLECTIVE BLACK PAVEMENT MARKING NON-REFLECTIVE BLACK PAVEMENT MARKING RETRO-REFLECTIVE YELLOW PAVEMENT MARKING 150 150 150
