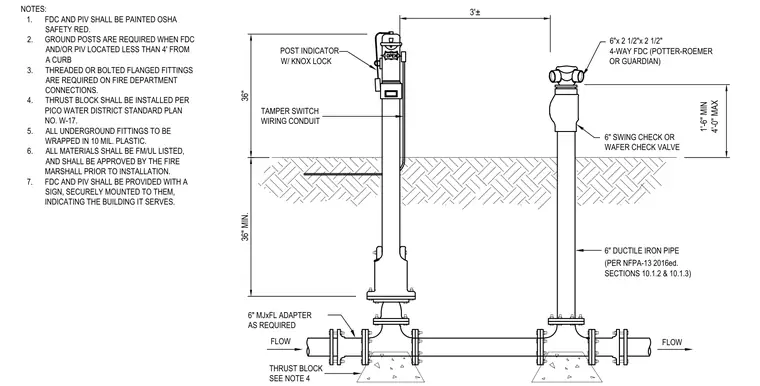

The assembly features a six-inch ductile iron pipe connected to a six-by-two-and-a-half-inch four-way fire department connection equipped with a six-inch swing check or wafer check valve. A thirty-six-inch post indicator valve with a Knox lock and tamper switch wiring conduit is installed alongside the fire department connection. Both vertical risers tie into the underground water main using mechanical joint by flanged adapters and flanged fittings bearing on concrete thrust blocks. Underground fittings are wrapped in ten-mil plastic and all components comply with NFPA standards.
6" MJxFL ADAPTER AS REQUIRED FLOW FLOW 6" DUCTILE IRON PIPE (PER NFPA-13 2016ed. 3'± 6"x 2 1/2"x 2 1/2" 4-WAY FDC (POTTER-ROEMER OR GUARDIAN) 6" SWING CHECK OR WAFER CHECK VALVE 36" POST INDICATOR W/ KNOX LOCK 36" MIN. 1'-6" MIN 4'-0" MAX TAMPER SWITCH WIRING CONDUIT SECTIONS 10.1.2 & 10.1.3) NOTES: 1. FDC AND PIV SHALL BE PAINTED OSHA SAFETY RED. 2. GROUND POSTS ARE REQUIRED WHEN FDC AND/OR PIV LOCATED LESS THAN 4' FROM A CURB 3. THREADED OR BOLTED FLANGED FITTINGS ARE REQUIRED ON FIRE DEPARTMENT CONNECTIONS. 4. THRUST BLOCK SHALL BE INSTALLED PER PICO WATER DISTRICT STANDARD PLAN NO. W-17. 5. ALL UNDERGROUND FITTINGS TO BE WRAPPED IN 10 MIL. PLASTIC. 6. ALL MATERIALS SHALL BE FM/UL LISTED, AND SHALL BE APPROVED BY THE FIRE MARSHALL PRIOR TO INSTALLATION. 7. FDC AND PIV SHALL BE PROVIDED WITH A SIGN, SECURELY MOUNTED TO THEM, INDICATING THE BUILDING IT SERVES. THRUST BLOCK SEE NOTE 4
