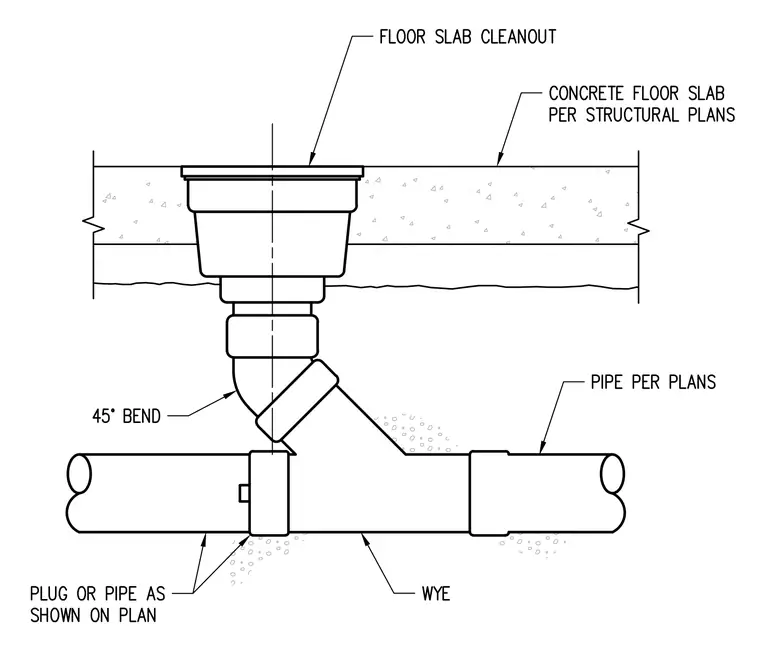

A floor slab cleanout installs flush within a concrete floor slab per structural plans, connecting vertically to a drainage pipe below. A forty-five degree bend transitions the vertical drop into a wye fitting tied into the main horizontal pipe run. A plug or pipe terminates the branch end as shown on plan, completing the accessible cleanout assembly.
