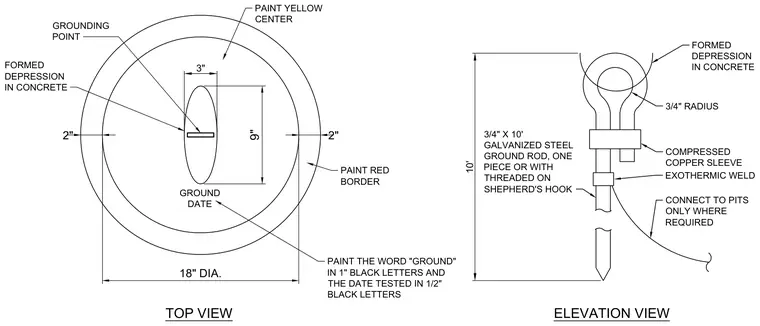

The assembly consists of a three-quarter-inch by ten-foot galvanized steel ground rod installed in a formed depression in concrete. The rod is either a single piece or joined with a threaded-on shepherd's hook. Connections include a compressed copper sleeve and an exothermic weld, with connections to pits made only where required. The top view details an eighteen-inch diameter marker with a yellow center, a red border, a central grounding point, and painted text indicating the word "GROUND" in one-inch black letters and the test date in half-inch black letters.
ELEVATION VIEW FORMED DEPRESSION IN CONCRETE 3/4" RADIUS COMPRESSED COPPER SLEEVE EXOTHERMIC WELD 3/4" X 10' GALVANIZED STEEL GROUND ROD, ONE PIECE OR WITH THREADED ON SHEPHERD'S HOOK CONNECT TO PITS ONLY WHERE REQUIRED TOP VIEW 10' 9" 3" 18" DIA. 2" 2" GROUNDING POINT PAINT YELLOW CENTER PAINT RED BORDER GROUND DATE PAINT THE WORD "GROUND" IN 1" BLACK LETTERS AND THE DATE TESTED IN 1/2" BLACK LETTERS FORMED DEPRESSION IN CONCRETE
