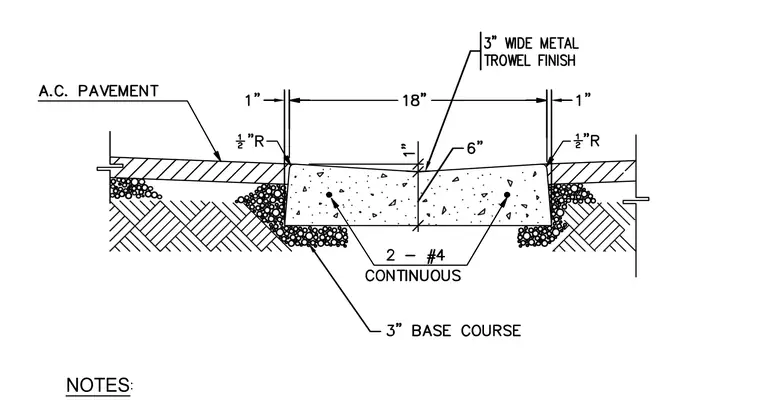

The cast-in-place concrete V-gutter features an eighteen-inch width with a one-inch depth at the center and half-inch radii at the outer edges. It is flanked by asphalt concrete pavement over a three-inch base course. The assembly is reinforced longitudinally with two continuous number four reinforcing bars.
