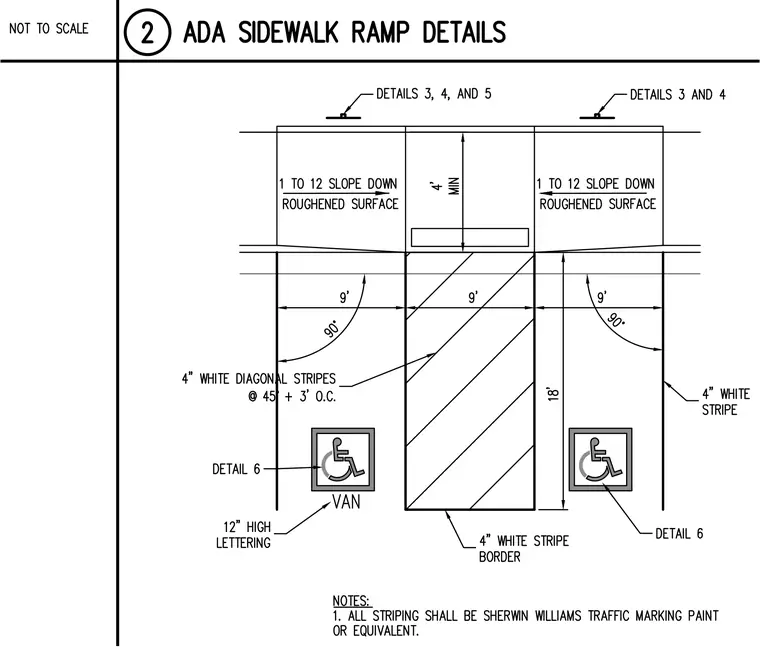

The accessible parking layout features 9-foot wide parking stalls with 4-inch white stripes, 4-inch white diagonal stripes at 45 degrees spaced 3 feet on center, and 12-inch high van lettering with accessible symbols. The access aisle requires a 4-foot minimum width and connects to ramps with a 1 to 12 slope down having a roughened surface. Striping requires Sherwin Williams traffic marking paint or equivalent.
