A terminal cleanout assembly features a cast iron ring and cover set flush with the finish grade atop a concrete mat. The vertical pipe is enclosed within fiber joint packing and connects to a ninety-degree bend sized per plan. The pipe material and diameter are specified in the engineering documents.

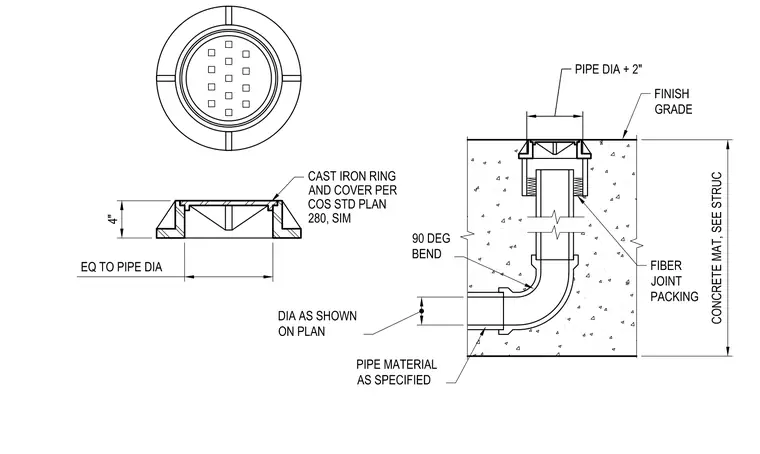

FIBER JOINT PACKING FINISH GRADE 90 DEG BEND EQ TO PIPE DIA PIPE MATERIAL AS SPECIFIED DIA AS SHOWN ON PLAN 4" PIPE DIA + 2" CONCRETE MAT, SEE STRUC CAST IRON RING AND COVER PER COS STD PLAN 280, SIM
