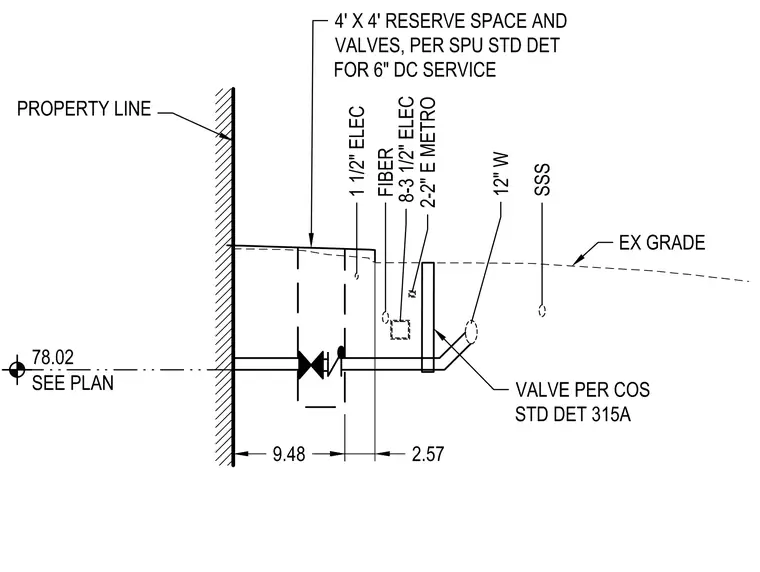

An underground utility section shows fire water service and adjacent utility lines running relative to the property line and existing grade. A valve installed per city standard detail 315A connects to the service line. A designated four-foot by four-foot reserve space houses valves per the standard utility department detail for six-inch double check service. Various utility conduits including electric, fiber, and metro lines run parallel within the right-of-way easement.
8-3 1/2" ELEC 12" W 2-2" E METRO FIBER 1 1/2" ELEC SSS PROPERTY LINE 9.48 2.57 78.02 SEE PLAN EX GRADE VALVE PER COS STD DET 315A 4' X 4' RESERVE SPACE AND VALVES, PER SPU STD DET FOR 6" DC SERVICE
