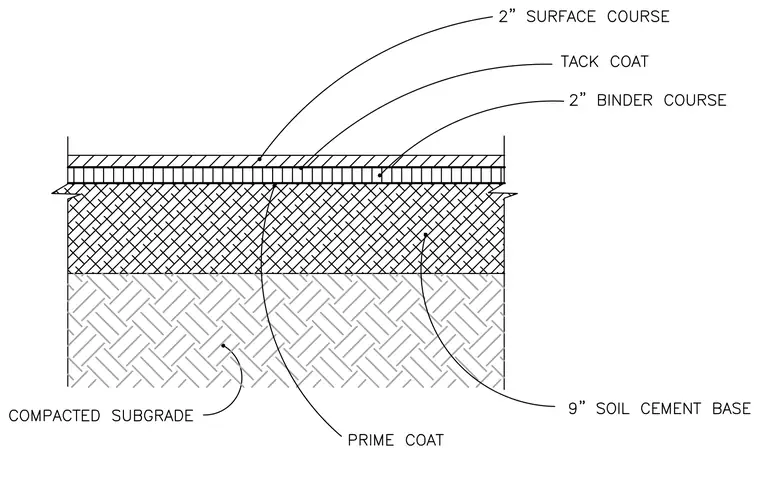

The pavement assembly consists of a two-inch surface course over a two-inch binder course, bonded together with a tack coat. A prime coat is applied directly above a nine-inch soil cement base, which rests upon a compacted subgrade.
